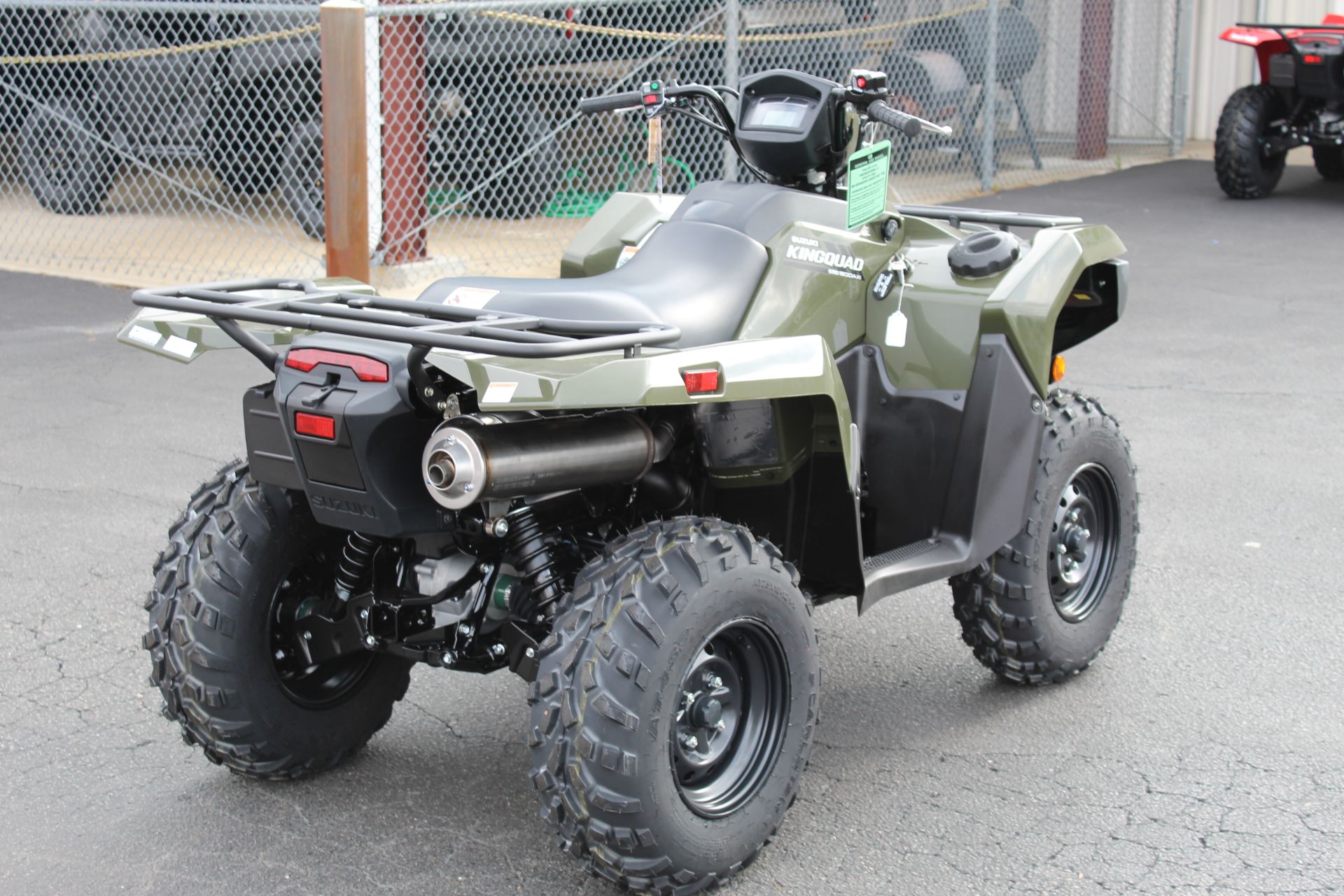

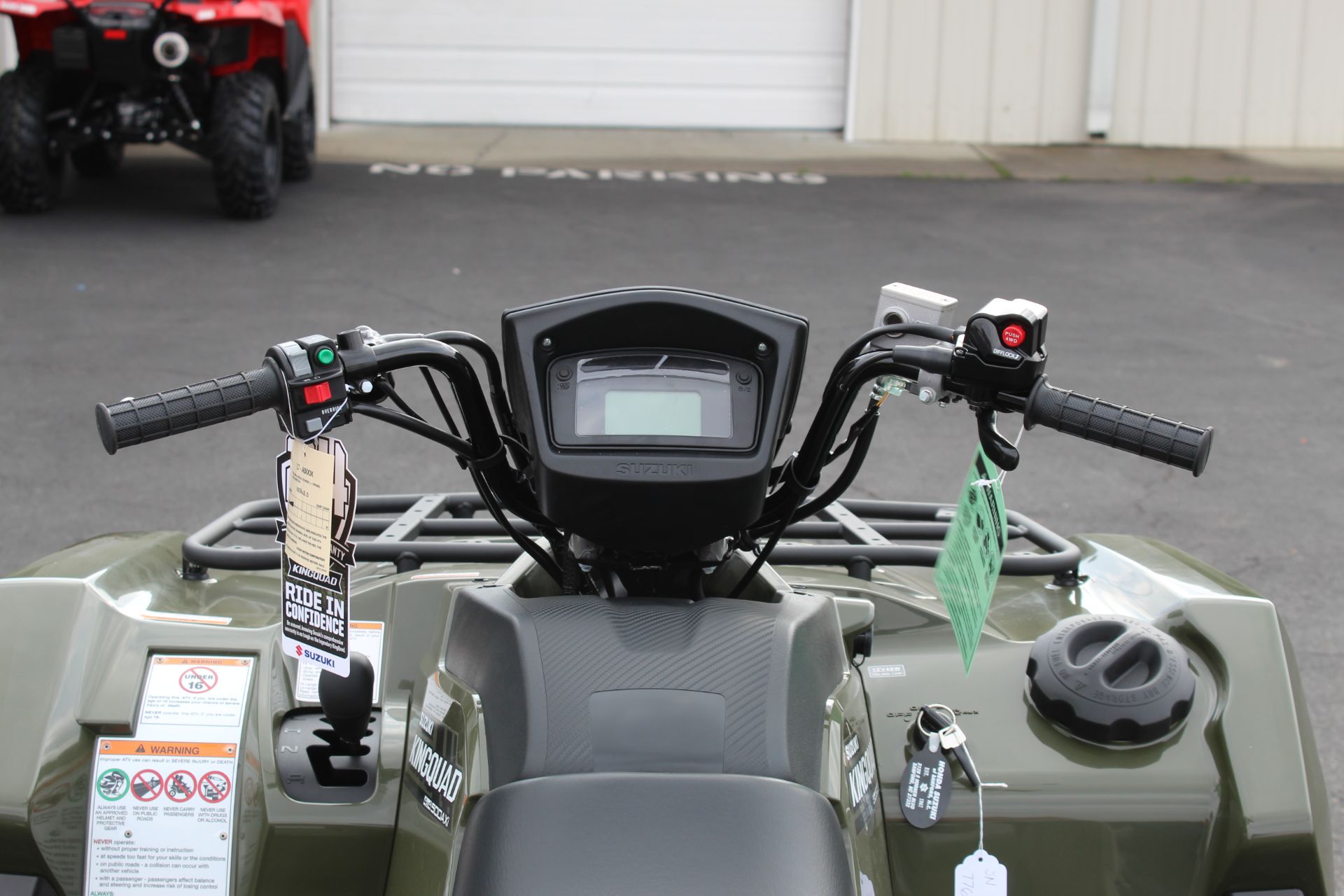

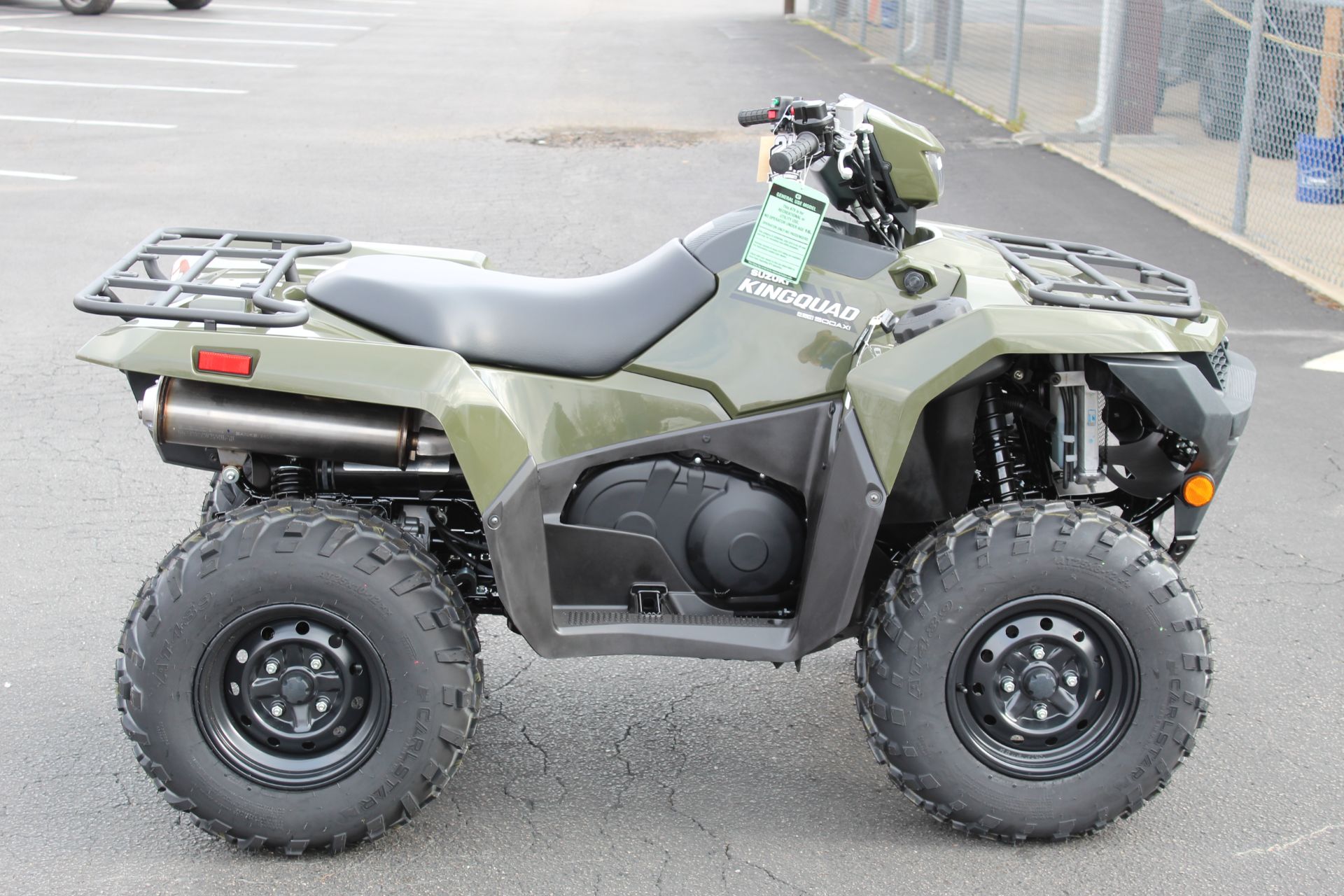

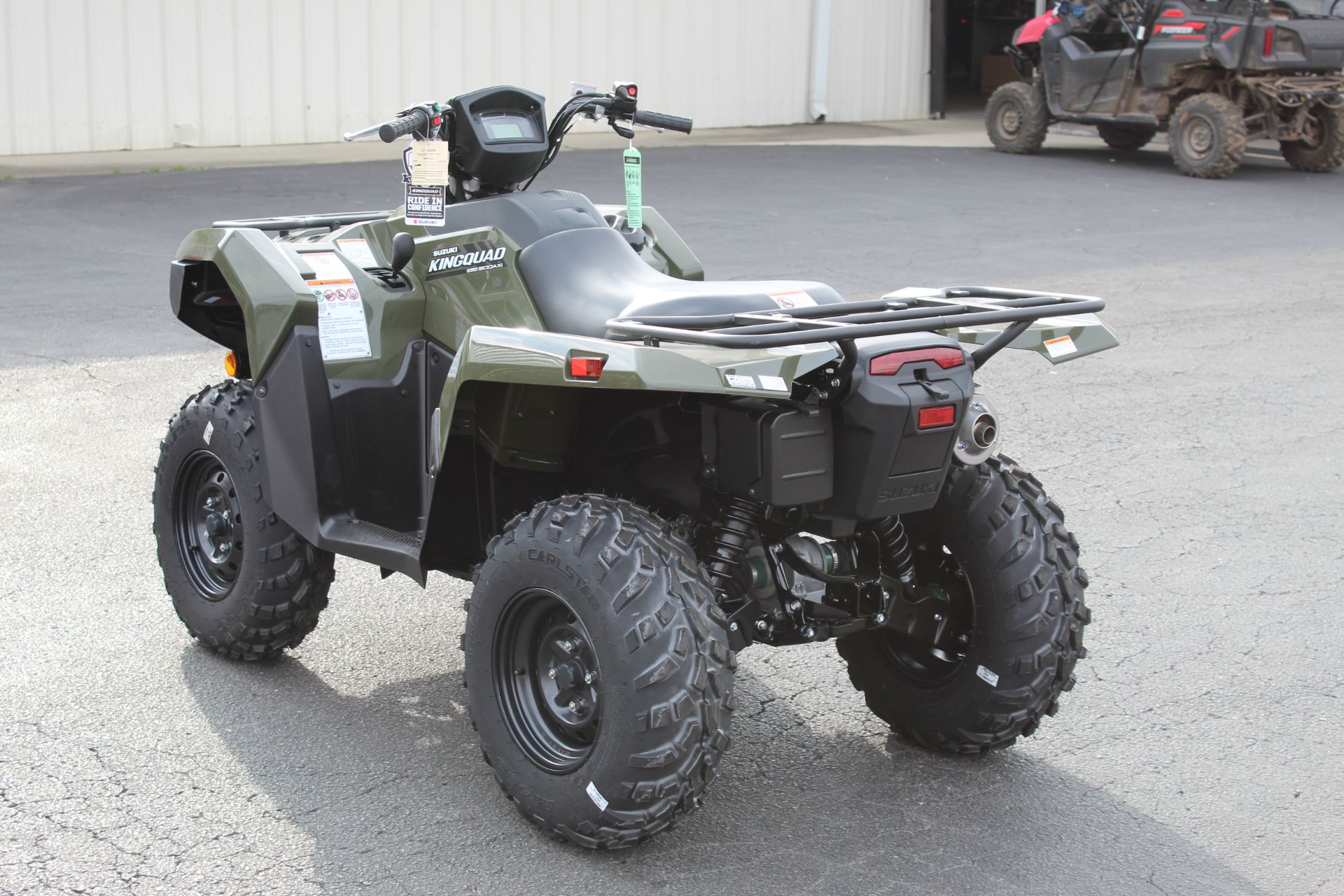

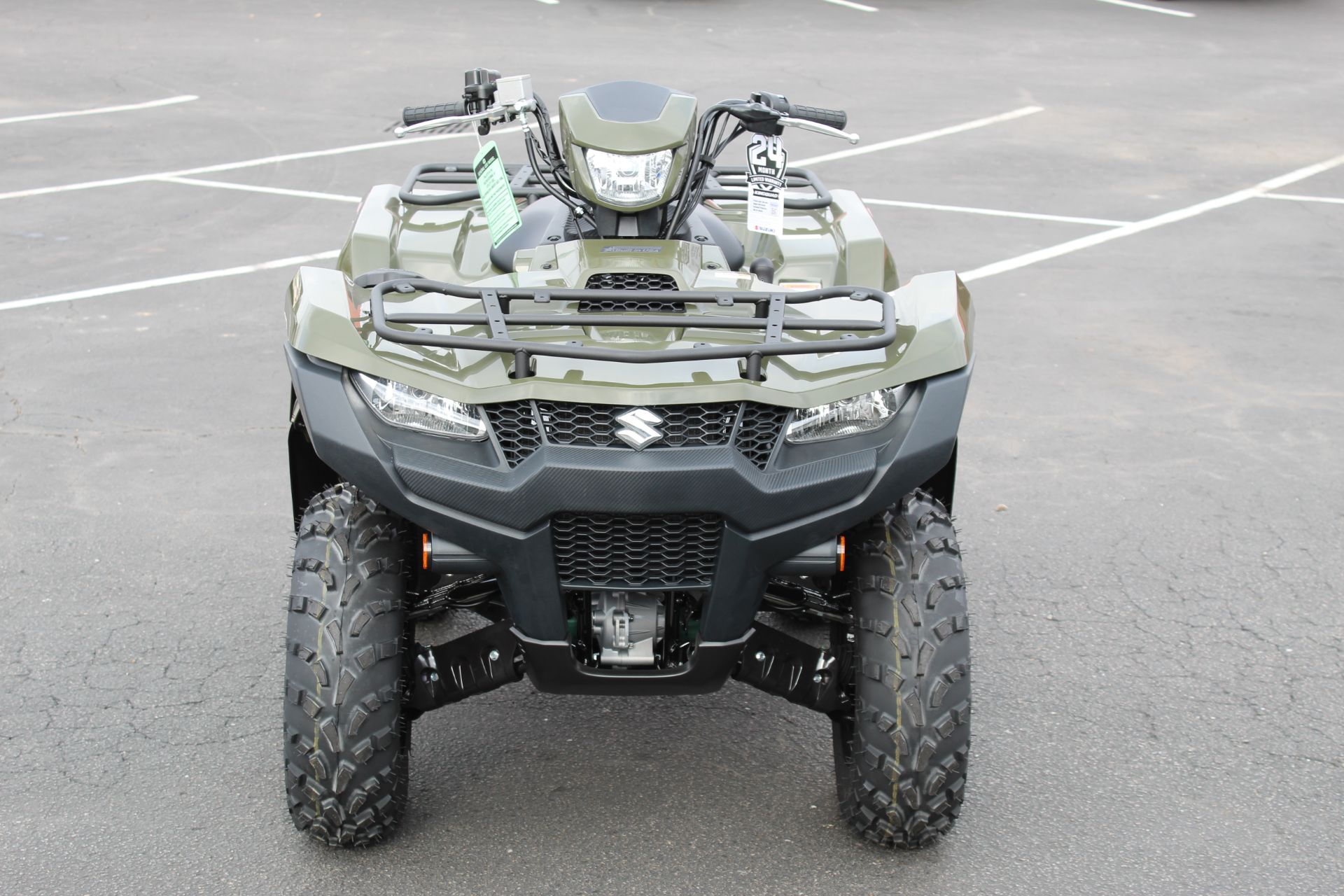

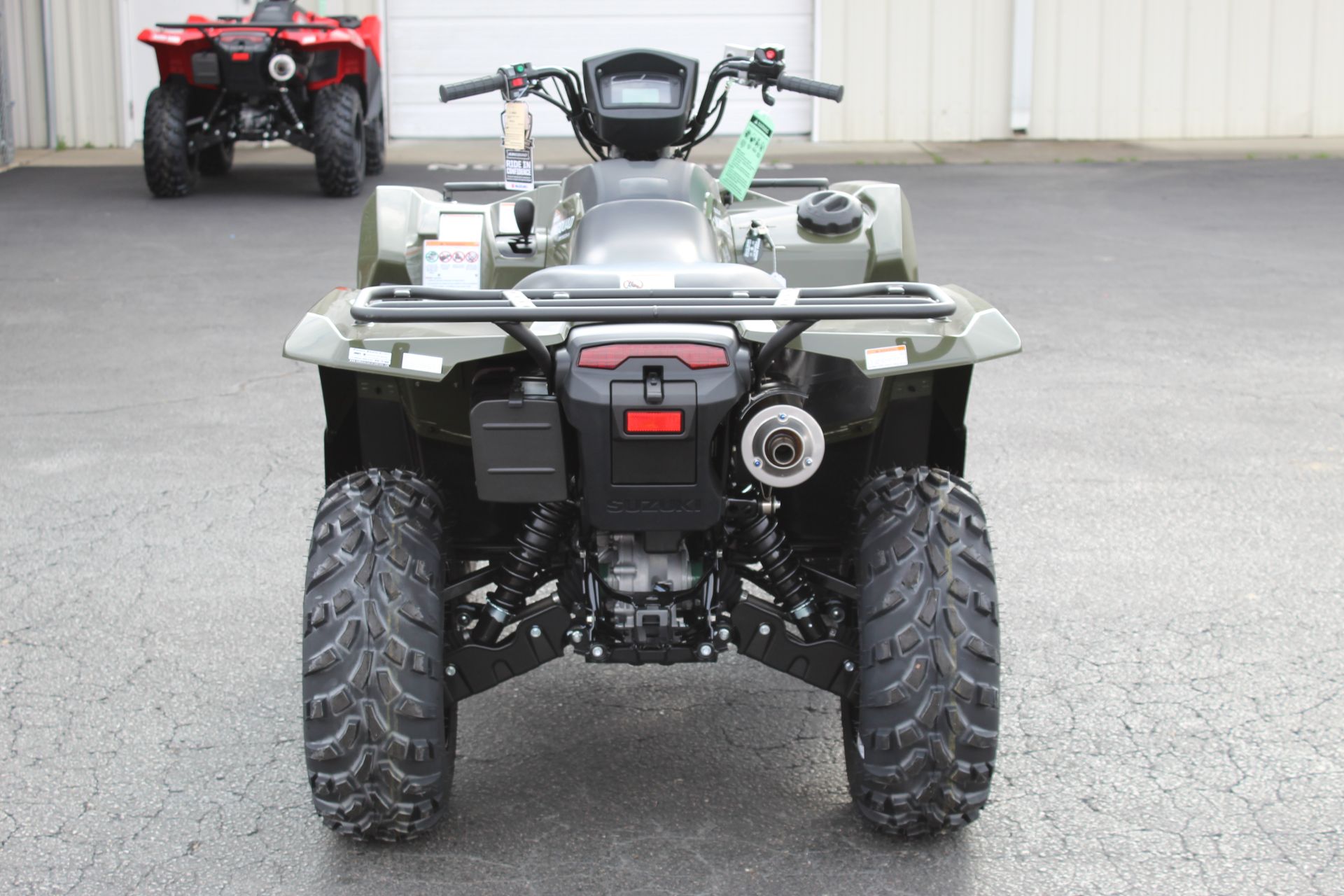

2026 Suzuki KingQuad 500AXi - SN7760
Get in Touch
Dealer Notes
The KingQuad 500AXi is not just an ATV, it’s a KingQuad ATV.
Suzuki, the inventor of the 4-wheel ATV, has created the world’s best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting and is ready for you to join its history. The 2026 Suzuki KingQuad 500AXi helps tackle challenging terrain with the capabilities that only a KingQuad possesses.
Info
Industry
Powersports
Make
Suzuki
Model
KingQuad 500AXi
Trim
Base
Year
2026
Price
8379
Stock Number
SN7760
Category
ATVs
Subcategory
ATV Utility
Condition
New
Vin
5SADW21A2T7100005
Odometer
1
Specifications
Brakes
Front - Disc, twin rotors Rear - Sealed oil-bathed multi-disc
Tires
Front - AT25 x 8-12, tubeless type x 2 Rear - AT25 x 10-12, tubeless type x 2
Ground Clearance
10.2 in. (260 mm)
Height
Overall - 50.6 in. (1,285 mm)
Length
Overall - 84.6 in. (2,150 mm)
Seat Height
36.2 in. (920 mm)
Weight
Curb - 695 lb. (315 kg)
Wheelbase
Overall - 50.6 in. (1,285 mm)
Width
Overall - 47.8 in. (1,215 mm)
Drive
Driven wheels - 2WD, 4WD and 4WD differential lock Final - Shaft
Transmission
Automatic variable ratio (V-belt), with high / low-range and reverse
Lighting
Headlight - 12V 35 / 35W x 2 fender-mounted, 12V 35W x 1 handlebar-mounted Tail light - LED
Bore x Stroke
3.40 x 3.20 in. (87.5 x 82 mm)
Clutch
Dry shoe, automatic, centrifugal type
Compression Ratio
9.9:1
Cooling
Liquid
Cylinders
Single
Displacement
493 cc (30.1 ci)
Engine
4-stroke, 4-valve, OHC
Fuel Capacity
4.6 US gal. (17.5 l)
Fuel System
Suzuki electronic fuel injection
Ignition
Electronic (transistorized)
Lubrication
Wet sump
Starting
Electric
Suspension
Front / Rear - Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
Additional Colors
Terra Green Flame Red
Warranty
24-month limited
