2027 Honda FourTrax Foreman 4x4 - COMING SOON TRX520FM1V
Get in Touch
Dealer Notes
Muscle for every mission
Some folks work nine to five. Some of us work from sunup to sundown. But the Honda Foreman 4x4—it never quits. Our legendary Honda reliability means it’s ready when you need it. Its powerful 518cc engine and long-travel suspension are just the start. Through smart engineering, unmatched build quality and a rich list of proven features, the Foreman 4x4 doesn't just work hard, it works better. It’s an ATV that not only you can count on, but the next generation can too.
Info
Industry
Powersports
Make
Honda
Model
FourTrax Foreman 4x4
Trim
Base
Year
2027
Price
8249
Stock Number
COMING SOON TRX520FM1V
Category
ATVs
Subcategory
ATV Utility
Condition
New
Specifications
Brakes
Front - Dual 7.5 in. (190 mm) discs Rear - 6.3 in. (160 mm) drum
Tires
Front - 25 x 8 - 12 Rear - 25 x 10 - 12
Ground Clearance
7.5 in.
Height
47.8 in.
Length
82.9 in.

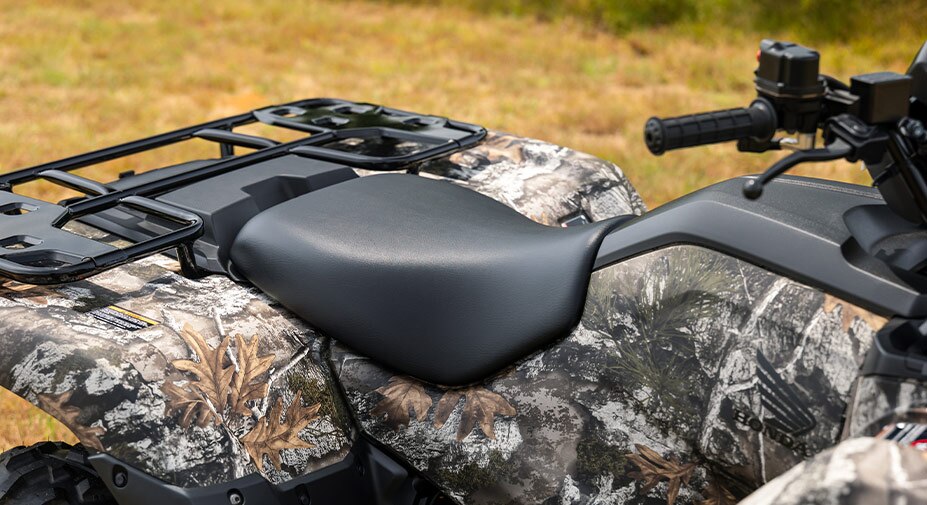

Seat Height
34.5 in.
Turning Radius
10.5 ft.
Weight
Curb - 635 lb. (includes all standard equipment, required fluids and a full tank of fuel)
Wheelbase
50 in.
Width
47.4 in.
Drive
Driveline - Direct front and rear driveshafts with torque-sensitive locking front differential
Drive System
4x4
Transmission
Five-speed manual with reverse
Bore x Stroke
3.8 x 2.8 in. (96 x 71.5 mm)
Compression Ratio
9.5:1
Cooling
Liquid
Cylinders
Single
Displacement
518 cc
Emissions
Meets current EPA off-road emissions standards

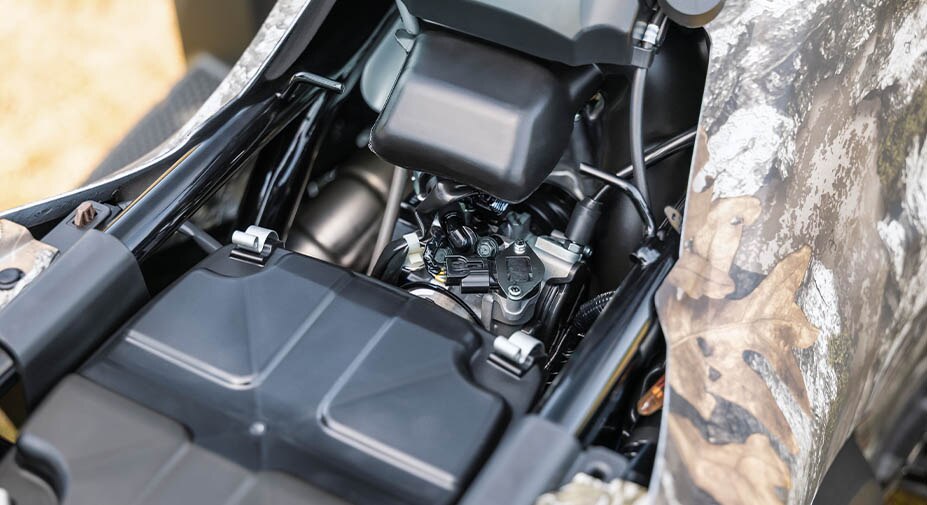

Engine
Type - Longitudinally mounted, four-stroke, OHV; two valves per cylinder
Fuel Capacity
3.9 gal. including 1.3 gal. reserve
Fuel System
Induction - Programmed fuel injection system (PGM-FI); 1.4 in. (36 mm) throttle body
Fuel Type
Gas
Starting
Electric with optional auxiliary recoil
Capacity
Front rack - 88 lb. Rear rack - 176 lb.

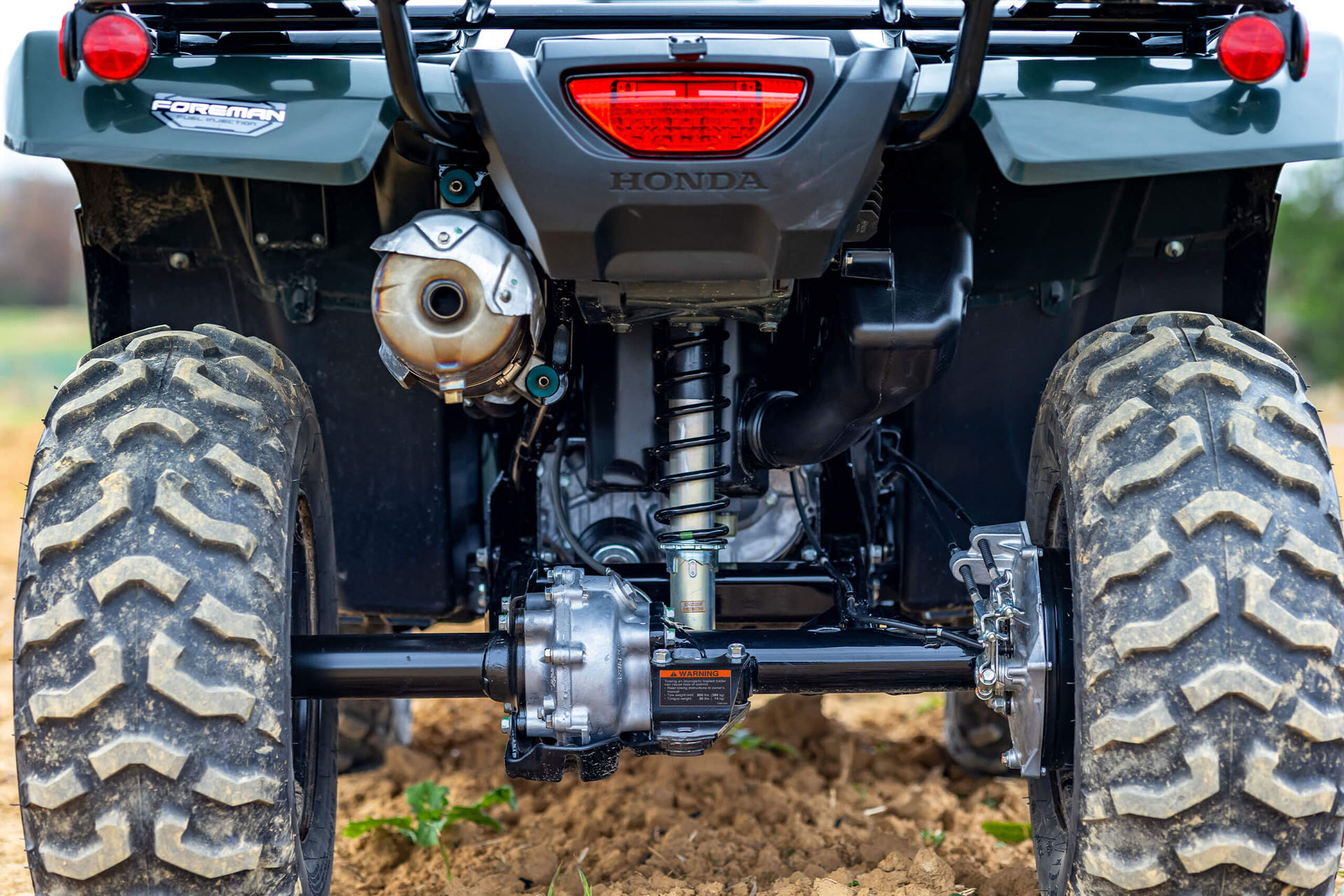

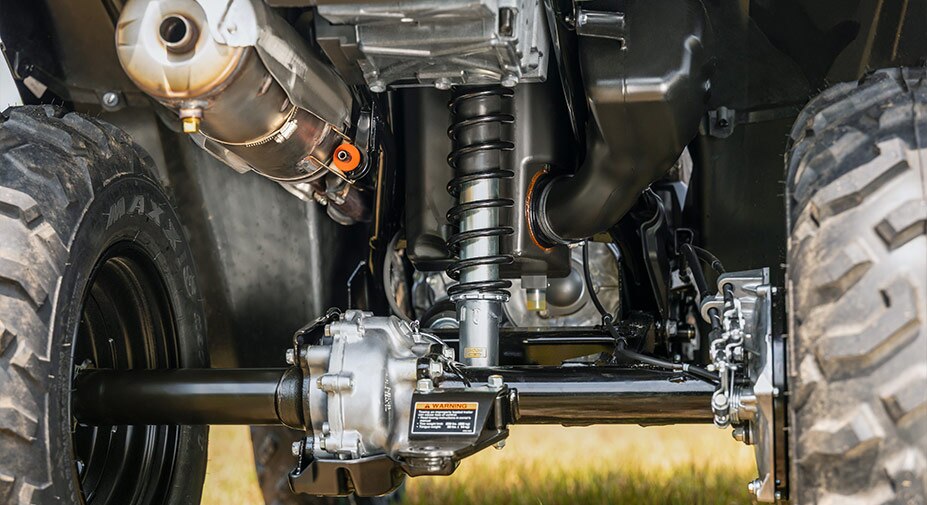

Suspension
Front - Independent double-wishbone; 7.3 in. travel Rear - Swingarm with single shock; 7.3 in. travel
Towing Capacity
848 lb.
Additional Colors
Hero Red Black Forest Green TrueTimber® Atera Camo
Includes
Important safety information - Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.
Warranty
Transferable, one year included, limited
